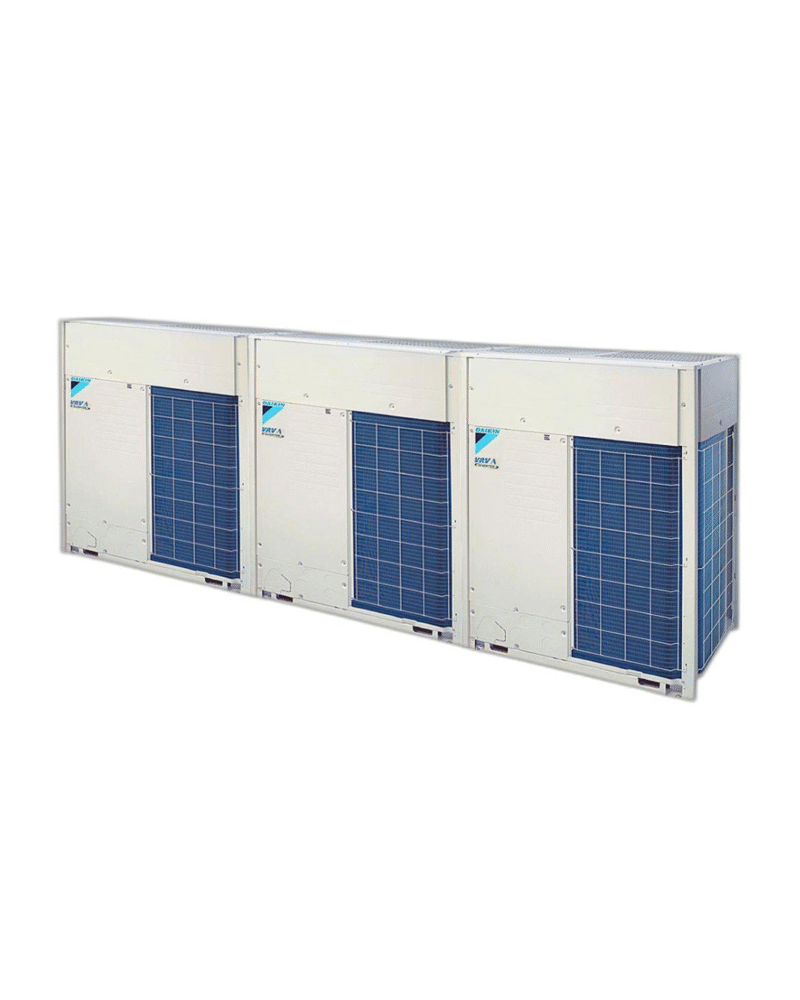

Daikin RXYQ56ARY6 – 56.0 HP VRV IV Outdoor Unit (Heat Pump)

Key Features:

• System Type: VRV IV – Heat Pump

• Cooling Capacity: Approx. 158.0 kW (539,100 BTU/h)

• Heating Capacity: Approx. 165.0 kW (563,100 BTU/h)

• Compressor Type: Multiple Hermetically Sealed Inverter Scroll Compressors

• Refrigerant: R-410A (Eco-friendly and non-ozone depleting)

• Power Supply: Three-phase, 380–415 V, 50 Hz

• Power Consumption: Approx. 52.0–54.0 kW (varies with system load)

System Compatibility:

• Maximum Connectable Indoor Units: Up to 130% of the unit capacity

• Compatible Indoor Types: Wall-mounted, cassette, ducted, floor-standing

• Control Options: Daikin Intelligent Touch Manager, centralized and remote monitoring, BMS integration

Physical Specifications:

• Dimensions (H × W × D): Approx. 1,685 × 1,240 × 765 mm

• Weight: Approx. 730–750 kg

Piping Specifications:

• Liquid Pipe Diameter: Approx. 12.7 mm

• Gas Pipe Diameter: Approx. 28.6 mm

Sound Pressure Level:

• Noise Level: Approx. 72–73 dB(A), depending on operational conditions

Operating Range:

• Cooling Mode: -5°C to 46°C (Outdoor temperature)

• Heating Mode: -20°C to 15.5°C (Outdoor temperature)

Applications:

The RXYQ56ARY6 is perfect for hotels, shopping centers, hospitals, office buildings, universities, and large residential complexes, where reliable performance, zoning flexibility, and energy efficiency are key priorities.
