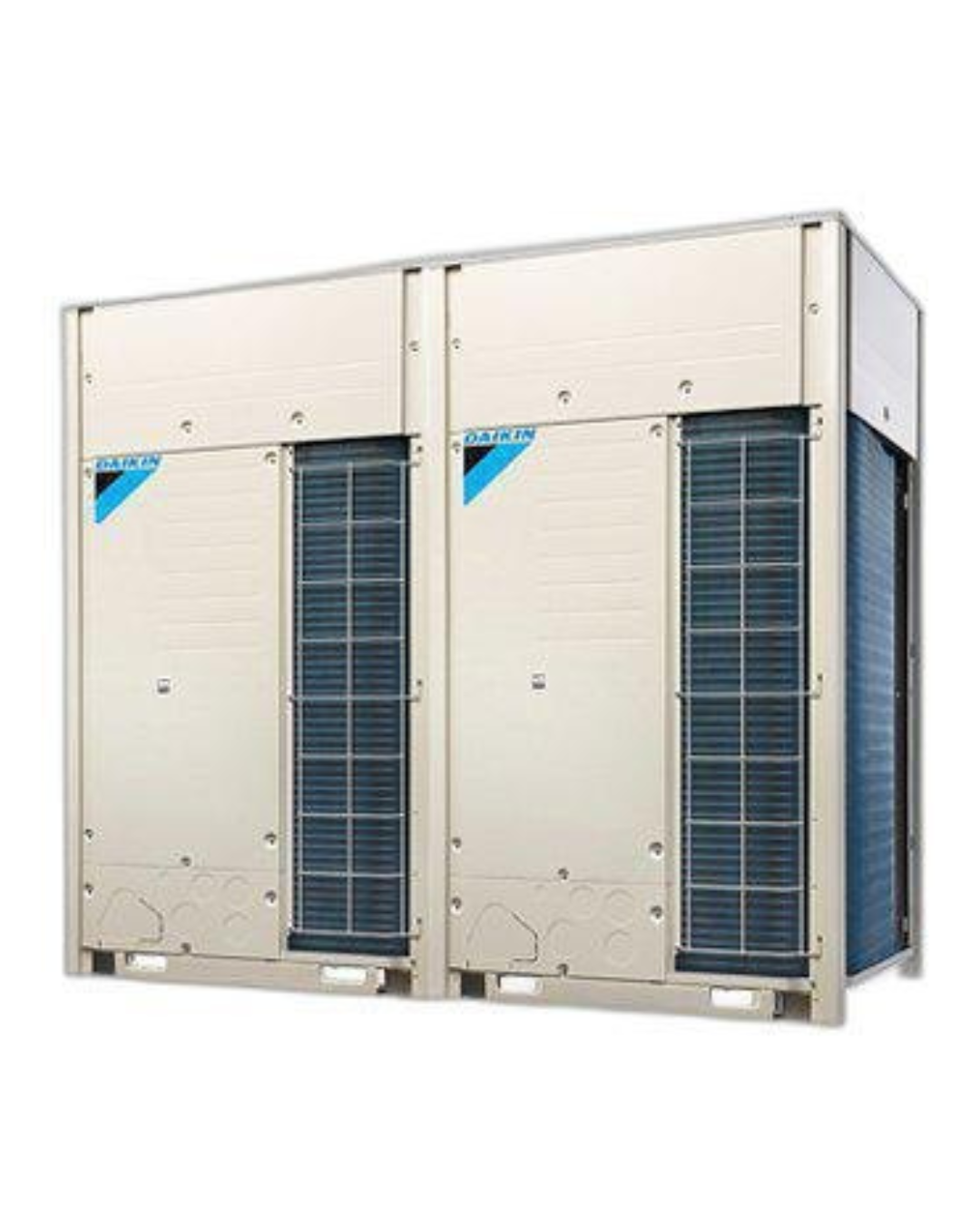

Daikin RXYQ24ARY6 – 24.0 HP VRV IV Outdoor Unit (Heat Pump)

Key Features:

• System Type: VRV IV – Heat Pump

• Cooling Capacity: Approx. 67.0 kW (228,700 BTU/h)

• Heating Capacity: Approx. 72.0 kW (245,800 BTU/h)

• Compressor Type: Hermetically Sealed Inverter Scroll Compressor

• Refrigerant: R-410A (Environmentally friendly refrigerant)

• Power Supply: Three-phase, 380–415 V, 50 Hz

• Power Consumption (Cooling/Heating): Approximately 20.5–22.5 kW depending on load

System Compatibility:

• Maximum Connectable Indoor Units: Up to 130% combination ratio

• Compatible Indoor Units: Wall-mounted, ducted, cassette, and floor-standing units

• Control Options: Compatible with Daikin Intelligent Touch Manager and Building Management Systems (BMS)

Physical Specifications:

• Dimensions (H × W × D): Approx. 1,685 × 1,240 × 765 mm

• Weight: Approx. 410–430 kg

Piping Connections:

• Liquid Pipe Diameter: Approx. 12.7 mm

• Gas Pipe Diameter: Approx. 28.6 mm

Sound Pressure Level:

• Noise Level: Approx. 70 dB(A), depending on operation conditions

Operating Range:

• Cooling Operation: -5°C to 46°C (Outdoor ambient)

• Heating Operation: -20°C to 15.5°C (Outdoor ambient)

Applications:

The RXYQ24ARY6 outdoor unit is ideal for use in large-scale HVAC systems such as office buildings, hotels, hospitals, and multi-residential complexes. It delivers efficient cooling and heating with advanced control options and flexible installation possibilities.
