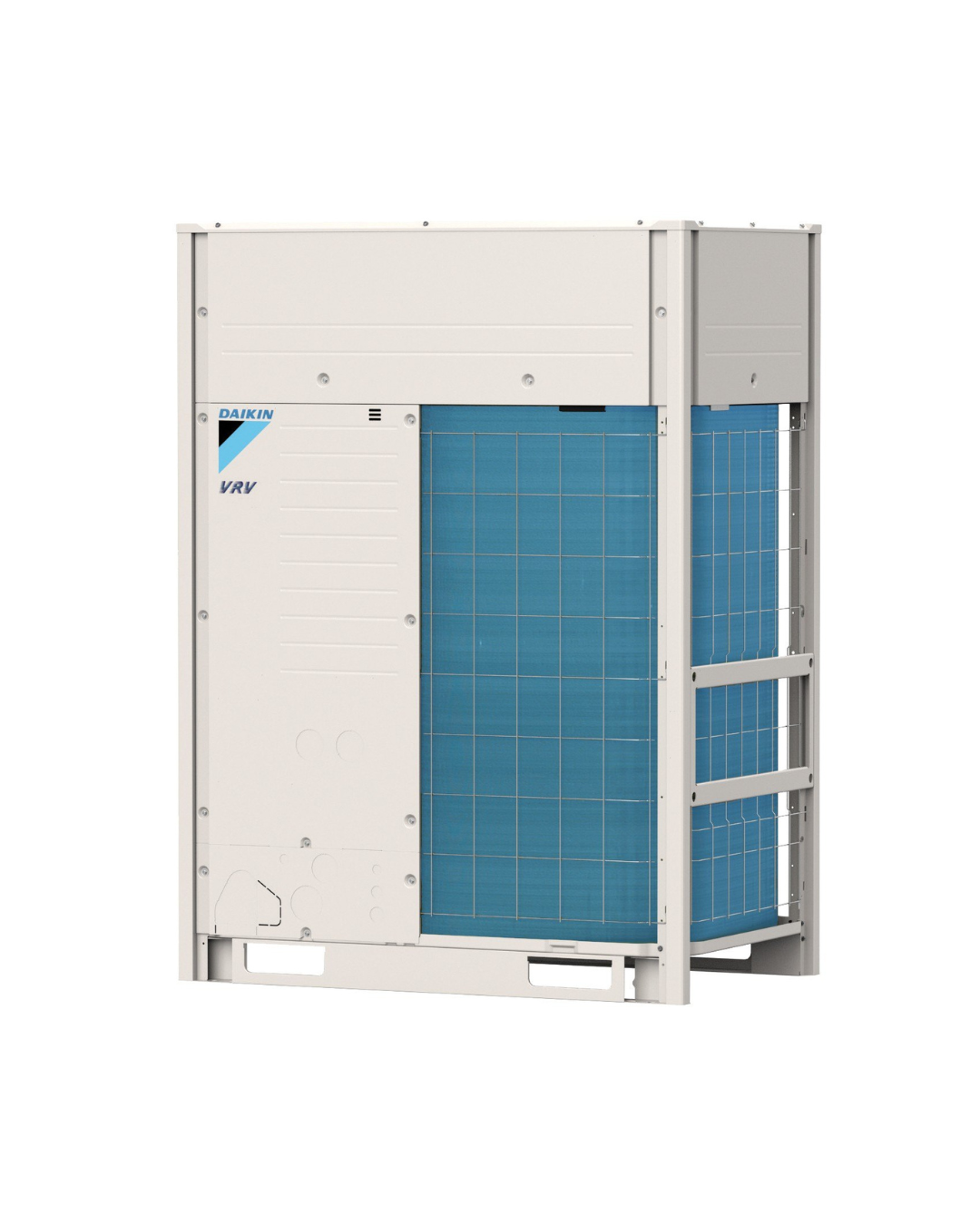

Daikin RXYQ14ARY6 – 14.0 HP VRV IV Outdoor Unit (Heat Pump)

Key Features:

• System Type: VRV IV – Heat Pump

• Cooling Capacity: Approx. 39.2 kW (133,800 BTU/h)

• Heating Capacity: Approx. 42.0 kW (143,300 BTU/h)

• Compressor Type: Hermetically Sealed Inverter Scroll Compressor

• Refrigerant: R-410A (Environmentally friendly and efficient)

• Power Supply: Three-phase, 380–415 V, 50 Hz

• Power Consumption (Cooling/Heating): Typically 11.5–13.0 kW, depending on load

System Compatibility:

• Maximum Connectable Indoor Units: Based on a combination ratio of 50%–130%

• Compatible Indoor Units: Wall-mounted, ducted, cassette, floor-standing units

• Control Options: Compatible with Daikin Intelligent Touch Manager, centralized controllers, and third-party BMS systems

Physical Specifications:

• Dimensions (H × W × D): Approx. 1,685 × 1,240 × 765 mm

• Weight: Approx. 310–330 kg

Piping Connections:

• Liquid Pipe Diameter: Approx. 12.7 mm

• Gas Pipe Diameter: Approx. 25.4 mm

Sound Pressure Level:

• Noise Level: Approx. 64–66 dB(A), depending on conditions

Operating Range:

• Cooling Operation: -5°C to 46°C (Outdoor temperature)

• Heating Operation: -20°C to 15.5°C (Outdoor temperature)

Applications:

The RXYQ14ARY6 is well-suited for large-scale applications such as shopping complexes, hospitals, office buildings, and luxury residences. It offers exceptional part-load performance, flexible installation, and integration with intelligent management systems, delivering optimal comfort and energy savings.
