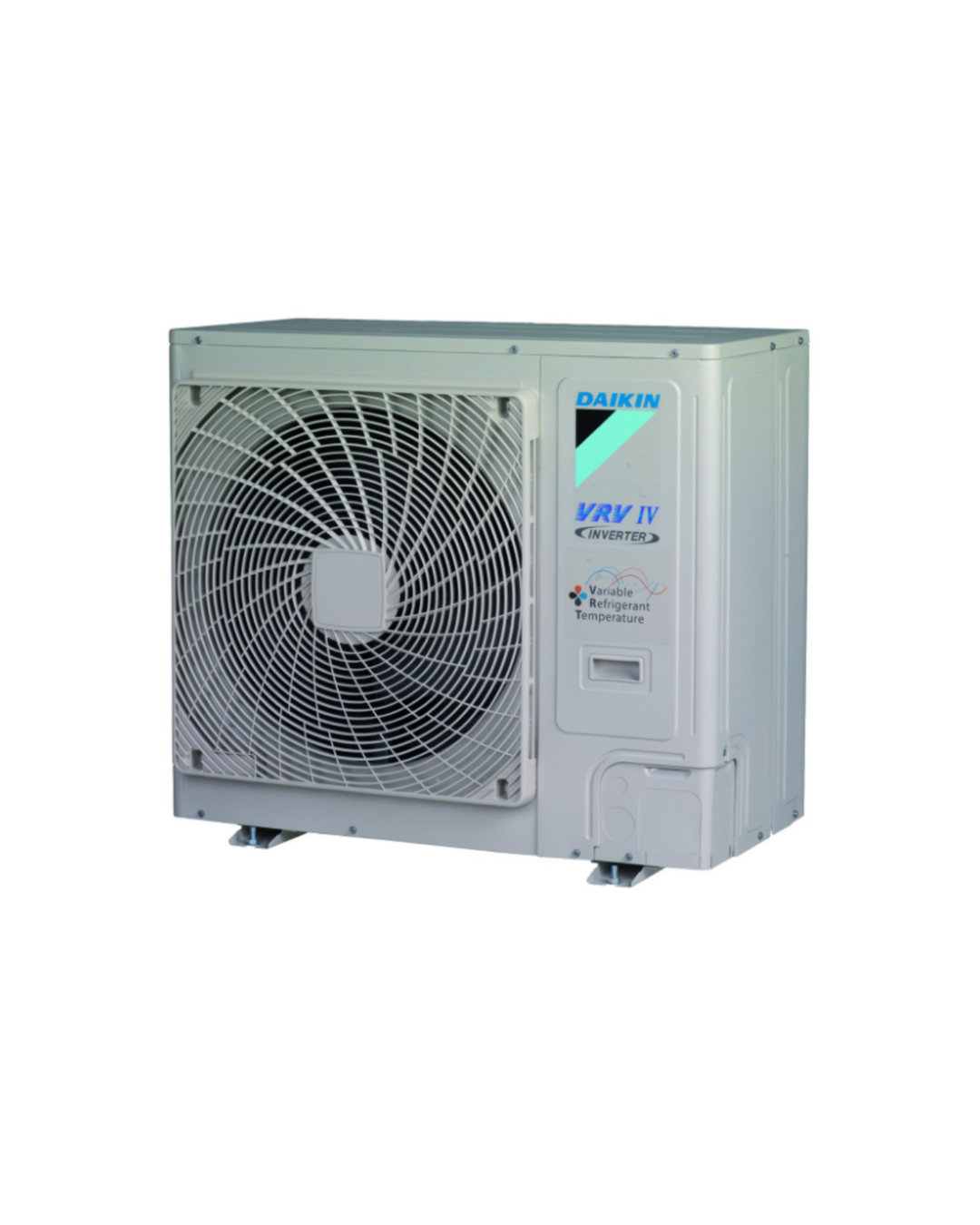

Daikin RXRQ4BRV16 – 4.0 HP VRV IV S-Series Outdoor Unit

Key Features:

• Cooling Capacity: 11.2 kW (38,200 BTU/h)

• Heating Capacity: 11.2 kW (38,200 BTU/h)

• Compressor Type: Hermetically sealed scroll compressor

• Refrigerant: R-410A (environmentally friendly)

• Power Supply: Single-phase, 220–240 V, 50/60 Hz

• Power Consumption:

  • Cooling: Approximately 3.0 kW

  • Heating: Approximately 2.4 kW

System Configuration:

• Maximum Connectable Indoor Units: Up to 8

• Combination Ratio: 50% to 130%

• Compatible with a variety of indoor units, including wall-mounted, cassette, and ducted types.

Dimensions & Weight:

• Dimensions (H × W × D): 880 × 940 × 320 mm

• Weight: Approximately 65 kg

Piping Connections:

• Liquid Pipe Diameter: 9.5 mm (flare connection)

• Gas Pipe Diameter: 15.9 mm (flare connection)

Sound Level:

• Sound Pressure Level: Approximately 52 dB(A)

Operating Range:

• Cooling Operation: -5°C to 46°C (outdoor temperature)

• Heating Operation: -20°C to 15.5°C (outdoor temperature)

Applications:

The RXRQ4BRV16 is ideal for small offices, boutiques, and residential spaces where energy efficiency and quiet operation are important. Its compact size allows easy installation even in limited outdoor spaces, while supporting multiple indoor units to provide flexible climate control.
