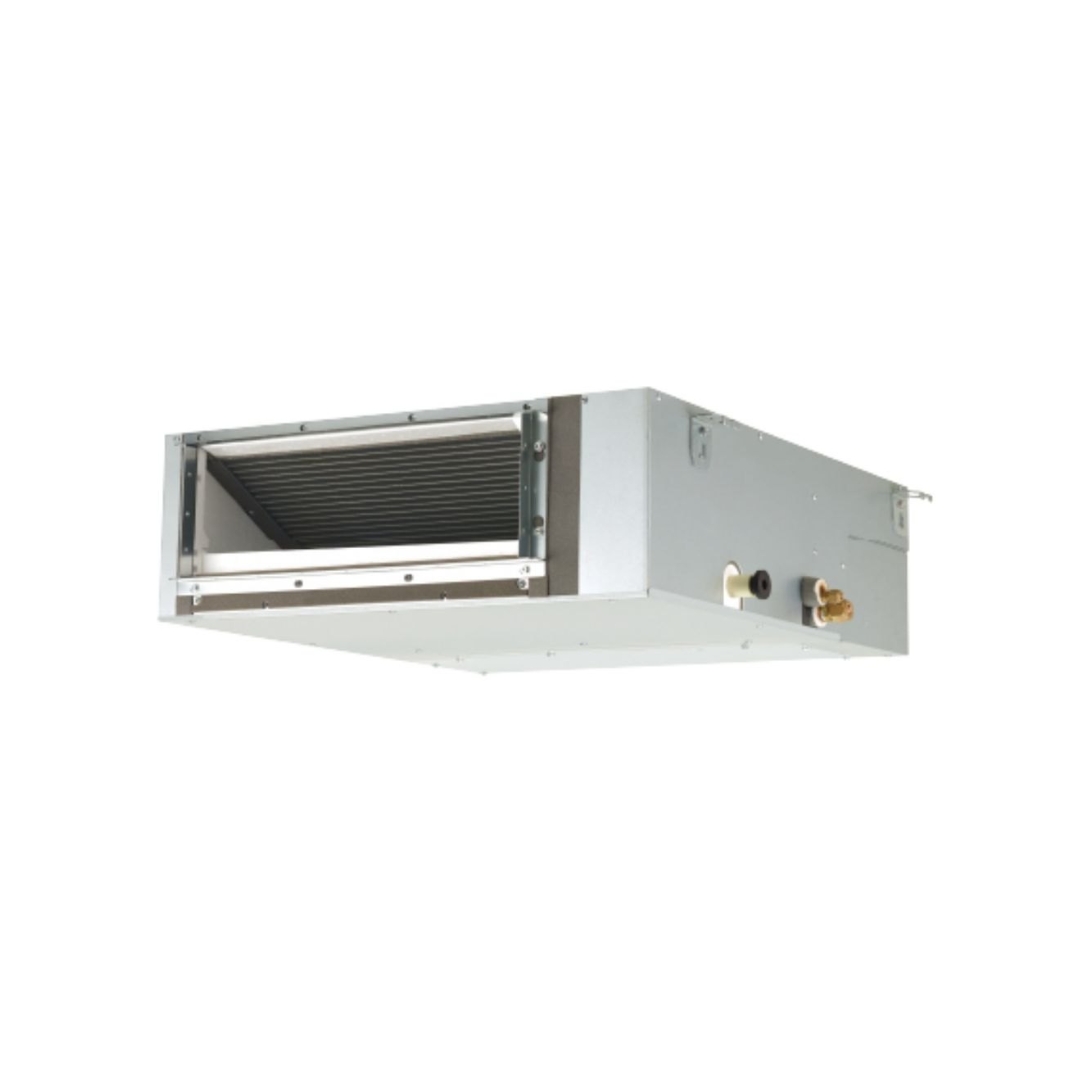

Daikin FDR65ERV16 – 5.5 Ton High Static

General Specifications:

Model: FDR65ERV16
Type: High Static Pressure Ducted Split AC
Cooling Capacity: 66,000 BTU/h (19.3 kW)
Power Supply: 415V, 3-phase, 50Hz

The Daikin FDR65ERV16 is a 5.5-ton high static ducted split air conditioner designed for superior cooling performance in large commercial and residential spaces. Its high static pressure capability allows air to travel longer distances through ducts, ensuring even air distribution across multiple rooms or zones. With a rugged build, energy-efficient components, and compatibility with BMS (Building Management System), this unit is ideal for offices, showrooms, hotels, and other large-area cooling needs.

ENQUIRY!

Categories: Central AC High Static Brand: Daikin

Description

General Specifications:

Model: FDR65ERV16
Type: High Static Pressure Ducted Split AC
Cooling Capacity: 66,000 BTU/h (19.3 kW)
Power Supply: 415V, 3-phase, 50Hz
External Static Pressure: Up to 196 Pa
Airflow Rate (H/M/L): Approx. 2,400 / 2,100 / 1,800 CFM
Sound Pressure Level: 45 – 52 dB(A)
Refrigerant: R-410A
Compressor Type: Scroll Compressor
Fan Motor Type: Direct Drive
Liquid Pipe Size: 3/8 inch
Gas Pipe Size: 7/8 inch
Drain Pipe Size: 1 inch (O.D.)
Indoor Unit Dimensions (H × W × D): Approx. 470 × 1,370 × 900 mm
Indoor Unit Weight: Approx. 80 kg
Installation Type: Ceiling Concealed
Control Options: Compatible with wired/wireless remote controllers and BMS systems
