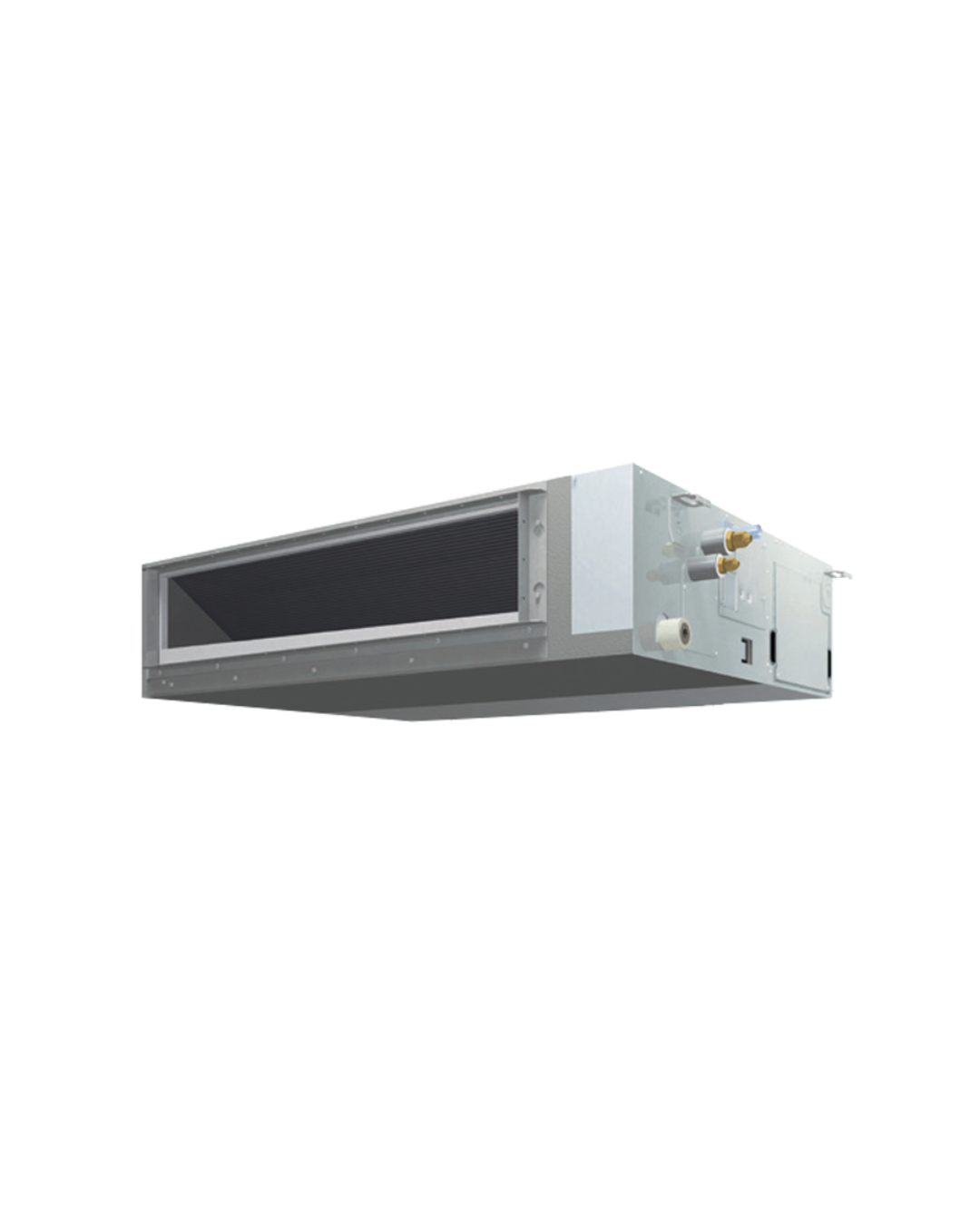

Daikin FDMQ36RVJU – 3.0 Ton Low Static Concealed Duct Indoor Unit

General Specifications:

Model: FDMQ36RVJU
Type: Low Static Concealed Duct Indoor Unit
Cooling Capacity: 36,000 BTU/h
Heating Capacity: 36,000 BTU/h
Power Supply: 208–230V, 60Hz, Single-phase

The Daikin FDMQ36RVJU is a 3.0-ton (36,000 BTU/h) low static concealed duct indoor unit from Daikin’s AURORA series, designed to deliver quiet, efficient, and discreet climate control. Ideal for residential and light commercial applications, this unit features a compact, slim profile that allows for flexible installation above ceilings or in tight spaces. The unit’s low sound levels and energy-efficient performance make it a great solution for areas requiring both comfort and aesthetic cleanliness.

ENQUIRY!

Categories: Central AC Low Static Brand: Daikin

Description

General Specifications:

Model: FDMQ36RVJU
Type: Low Static Concealed Duct Indoor Unit
Cooling Capacity: 36,000 BTU/h
Heating Capacity: 36,000 BTU/h
Power Supply: 208–230V, 60Hz, Single-phase
External Static Pressure: Up to 0.18″ W.G.
Airflow Rate (H/M/L): Approx. 920 / 820 / 710 CFM
Sound Pressure Level: 38 – 44 dB(A)
Fan Motor Type: DC Motor
Refrigerant: R-410A
Liquid Pipe Size: 3/8 inch
Gas Pipe Size: 5/8 inch
Drain Pipe Size: 1 inch (O.D.)
Dimensions (H x W x D): 11-13/16″ × 39-3/8″ × 31-1/2″
Weight: Approx. 100 lbs (45 kg)
Installation Options: Rear or Bottom Air Return
Control Options: Compatible with wall-mounted wired and wireless controllers
