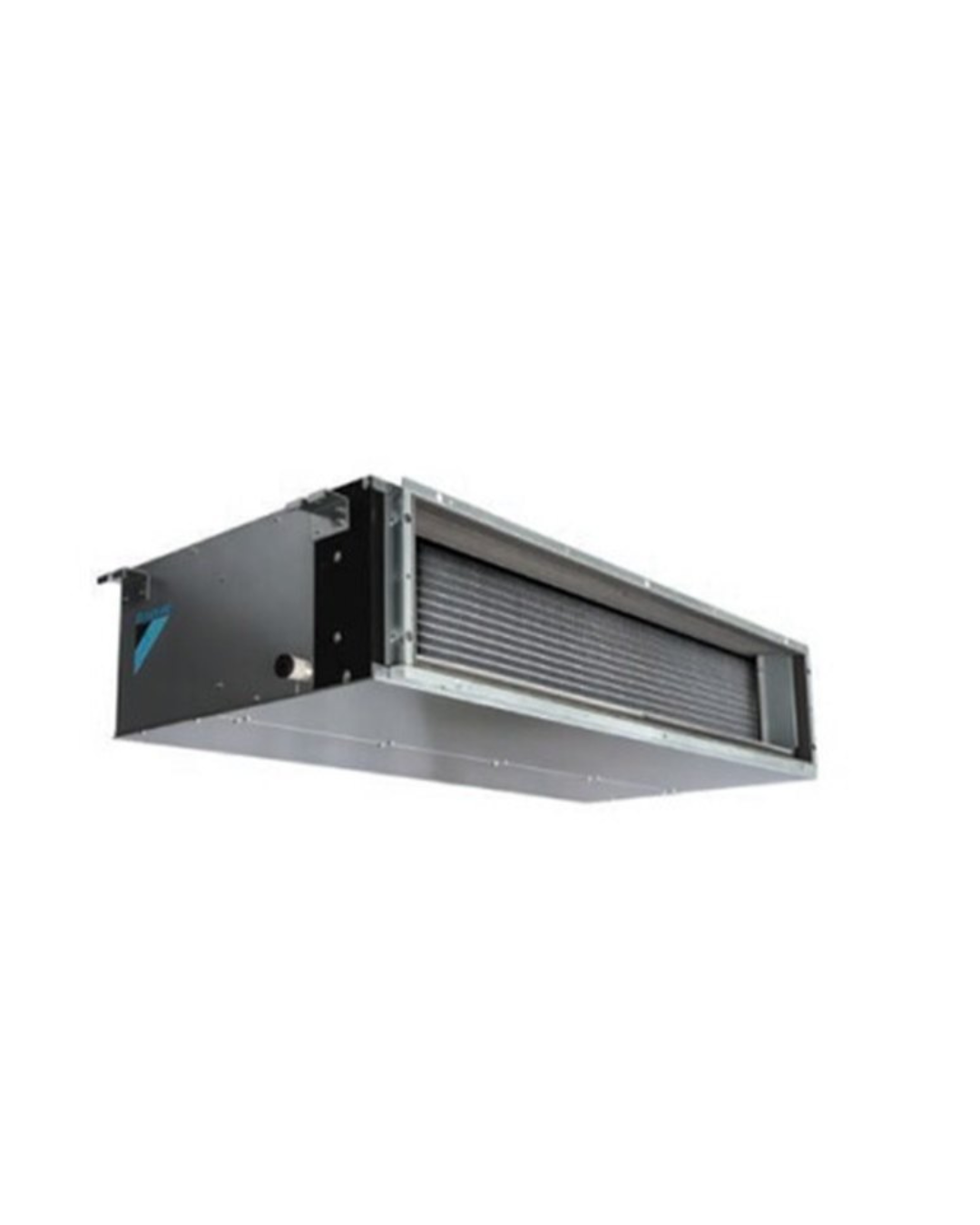

Daikin CDXS30LVJU – 2.5 Ton Low Static Concealed Duct Indoor Unit

0 customer reviews

Daikin CDXS30LVJU – 2.5 Ton Low Static Concealed Duct Indoor Unit

General Specifications:

Model: CDXS30LVJU
Type: Low Static Concealed Duct Indoor Unit
Cooling Capacity: 30,000 BTU/h
Heating Capacity: 34,800 BTU/h
Power Supply: 208–230V, 60Hz, Single-phase

The Daikin CDXS30LVJU is a 2.5-ton (30,000 BTU/h) low static concealed duct indoor unit designed for seamless integration into multi-zone mini-split systems. Its slim profile allows for discreet installation within ceiling or floor cavities, making only the air intake and discharge grilles visible. This design ensures efficient and unobtrusive climate control, ideal for residential and light commercial applications. Equipped with a DC fan motor and Econo Mode, the unit enhances energy efficiency while maintaining optimal comfort levels.

Categories: Central AC Low Static Brand: Daikin

Description

General Specifications:

Model: CDXS30LVJU
Type: Low Static Concealed Duct Indoor Unit
Cooling Capacity: 30,000 BTU/h
Heating Capacity: 34,800 BTU/h
Power Supply: 208–230V, 60Hz, Single-phase
External Static Pressure: Up to 0.16″ W.G.
Airflow Rate: Approx. 710 CFM (High)
Sound Pressure Level: 47 dB(A) (High)
Fan Motor Type: DC Motor
Refrigerant: R-410A
Liquid Pipe Size: 3/8 inch
Gas Pipe Size: 5/8 inch
Dimensions (H x W x D): 7-7/8″ × 35-7/16″ × 24-7/16″
Weight: Approx. 60 lbs (27 kg)
Installation Options: Rear or Bottom Return
Control Options: Compatible with both wired and wireless controllers
